4.4.1 -  Apollo 12 Day 1, Launch

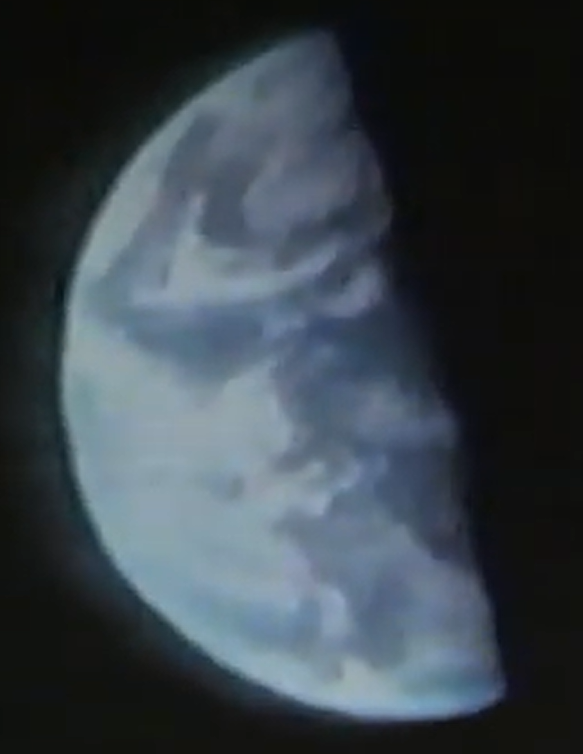

Given the issues with the TV camera it’s ironic that some of the first images of Earth were made in a TV broadcast. According to the timeline the broadcast started at 19:45 and continued until 20:50, and there is a copy of this broadcast available on youtube (from the same source as figure A screenshot from this broadcast is given in figure, together with satellite comparisons. While the quality is relatively poor, it's clear that this live broadcast is showing the same features as the satellite images, and also that it could not be a re-transmission of ATS-3's image as there is insufficient coverage of the northern hemisphere by it.

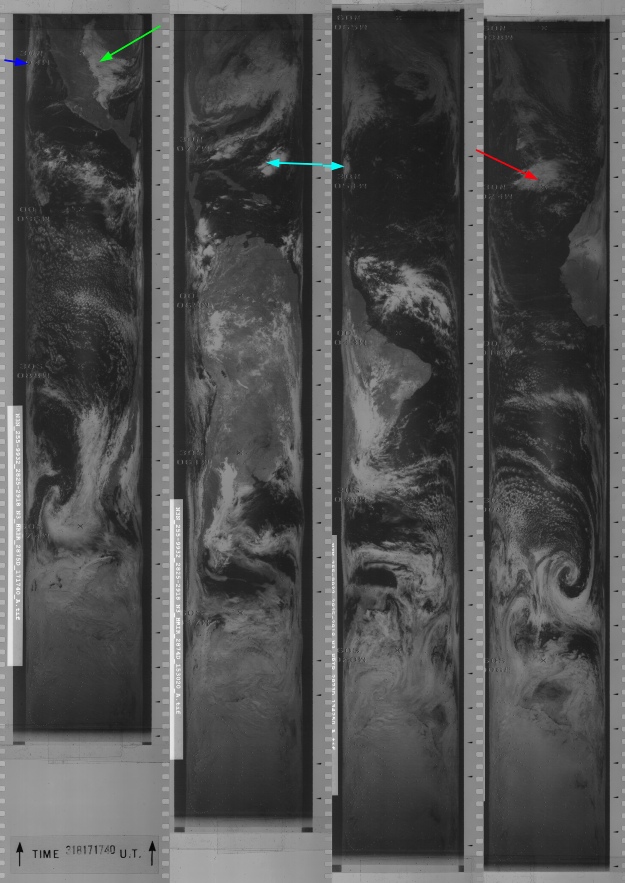

Figure Rotated screenshot from live TV broadcast compared with ESSA (top left & middle), NIMBUS-3 IDCS (centre left) and ATS (bottom right). Source given in text. Left are the NIMBUS-3 HRIR strips

A slightly better version of the footage is available from this youtube source, which is a compilation of news footage shown to Vietnam troops. It includes a zoomed view of the north Atlantic, with considerably more detail. It is shown below in figure 4.4.1b, together with the ESSA, ATS-3 and NIMBUS images from the same area. Included in the satellite images is one reproduced in a newspaper the day after the launch, showing that they were publicly available.

Particularly noticeable in this better quality shot is the band of cloud extending across Mexico, as well as the thin ‘V’ shaped stream of cloud to the south of this, and a similar thin band of cloud along the Mexican Pacific coast. The NIMBUS IDCS tile was taken on day 318 (November 14th) at 17:56 – 2 hours before the broadcast and about 90 minutes before launch. We’ll look at the timings in more detail later.

As in previous missions, the Astronauts communicated their own observations to Capcom of the weather conditions on the ground (these are recorded in the technical air to ground transcripts, available here: here).

At 3:34 MET Dick Gordon says:

003:34:12 Gordon: Okay. You should be looking at the Yucatan Peninsula, Mexico; Baja California is in plain sight. It's a pretty nice day down there. The Gulf - The Western Gulf of Mexico has a cloud coverage along the coast; looks like it's almost up to Houston. It's South and West of it.

003:34:32 Carr: Roger.

003:34:33 Gordon: It looks like that garbage we came through down at the Cape is off the coast at this time.

The ‘gartbage’ to which he refers is the storm that hit the ascending rocket twice as it launched, prompting the famous “try SCE to Auxiliary” instruction to reset the electronics.

A couple of minutes later we have:

003:36:43 Gordon: Hey, Jer, it's a fantastic sight. The Mississippi Valley has a little bit of cloud coverage coming down from Canada, and there's some in the north - Northeast part of the country, up in the New England States. Looks like they may be getting some snow over here in the next day or two. Florida is cut in half by that front that went through this morning. The West Coast looks absolutely gorgeous; Baja California is clear, looks like the San Diego/Los Angeles area to the South and West of them is a little cloud coverage- covered. I won't say anything about smog.

The smog he doesn't want to talk about is the mass of cloud identified by the blue arrow, and Baja California is indeed clear compared with Los Angeles & San Diego. The green arrow points out the system cutting Florida in half, and the cloud systems descending from Canada into the Mississippi are immediately north of that arrow in the preceding figure, and the snow systems over New England are to the east of that.

003:37:21 Carr: Roger. You see any more dry fronts anywhere?

003:37:24 Gordon: Hey, that was one of the driest ones I've seen in a long time; I hope I never see another one like it. As I look up North, there's nothing but clouds up there.

We also have a confirmation of the time of the Earth image:

003:40:02 Gordon: Hey, Jer, I'm going to take the camera out of that left window out the Earth.

Or slightly after 20:00 on the 14th.

These features aren’t so obvious in the TV, but then you look at the still photographs taken around the same time they most definitely are. The first of those images don’t show a full Earth, but they certainly show good details of it (figure

It’s clear from these images that the crew’s descriptions from orbit are absolutely accurate, and the view I’ve shown in the SkySafari depiction indicates how they were able to see those views. The lightning generating cumulus cells are also very evident.

The crew continue to use this magazine as they document the undocking of the CSM, and the first image approaching a full disk is AS12-50-7331 shown in figure - the best quality version of which is at the AIA (Source).  A comparison with the relevant satellite images is given in figure

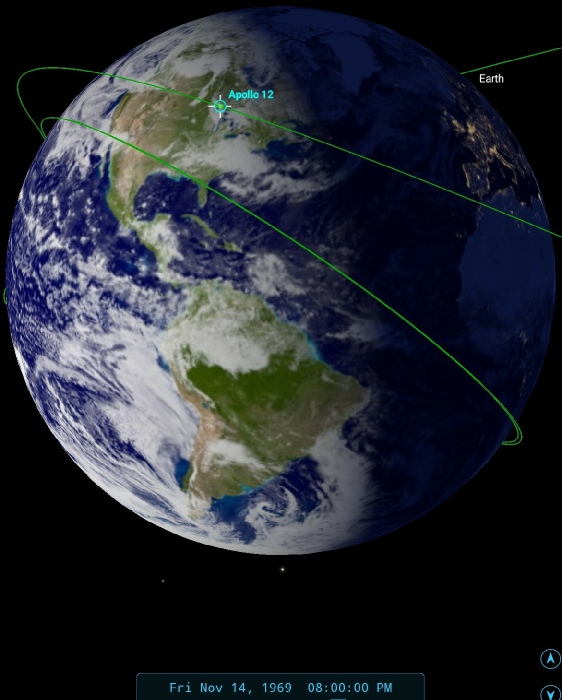

Figure AS12-50-7326 and AS12-50-7325, with SkySafari time depiction. Left is a zoomed and cropped area of AS11-50-7325 across Florida.

Figure AS12-50-7331. Source given in text.

Figure Main image - AS12-50-7331 compared with ESSA-9 (top left), NIMBUS-3 (centre left) and ATS-3 (centre right). Bottom left are NIMBUS HRIR strips, bottom centre is a 3D reconstruction using digitally restored ESSA data. Bottom right a SkySafari depiction of the time.

Immediately prior to this, there are several frames showing the SIV-B with the exposed LM visible (see figure The timeline for the mission (Source) shows that separation of the CSM from the SIV-B occurred at 19:40, docking with the LM at 19:48 on the 14th. This gives a pretty precise window for when this photograph (and numerous others at various zoom extents before docking). must have been taken. Immediately after it are photographs showing an empty SIV-B, recorded in the timeline as photography of the now defunct stage venting gas. That photography is timed at 20:41, compared with CSM separation at 19:40, so it seems reasonable to assume that this photograph was taken at some time between the two. A close examination of the TV image suggests that the band of cloud identified by the red arrow is somewhat longer than in the Apollo image, so I have erred on the side of caution and put the time nearer to the venting photography.

The crew took Earth images over quite some time, interspersed with various bits  off disappearing hardware - sufficient for Earth to rotate slightly underneath them, as can be seen by comparing two images showing the terminator - AS10-50-7331 and the last in this sequence of photographs, AS10-50-7353 (figure

Figure Comparison of a small  area of AS12-50-7331 and AS12-50-7353.

Returning to the satellite imagery analysis, the Apollo image has a number of unique features that are easily visible on the satellite photographs, particularly the large 'tick' shaped feature sweeping from the Mexican coast across the Gulf and up the east coast of the USA. The weather patterns either side of the tip of south America are also very distinctive and easy to spot on the satellite images.

The ATS-3 image provides a useful counter-argument to the suggestion that the colour Apollo photographs were somehow derived from the whole disk images provided by the HEO geostationary satellites. While the Apollo image used shows the Earth taking up a substantial portion of the image, other photographs taken at the same time show a much smaller globe, demonstrating that the Apollo craft was much further out than the ATS satellites. The portion of the Earth shown by Apollo is not matched by the ATS-3 image – it is over a different part of the Earth & at a different angle. ATS-1 was stationed over the Pacific, only a small part of which is seen in the Apollo image.

As far as timings are concerned, the ATS image was taken at 14:25. The NIMBUS orbit closest to the terminator would be number 2873, which was started at 14:14. ESSA's image is more difficult to interpret, as unlike previous missions the orbits that comprise the image dated the 14th are not given. However, the track covering the terminator area would be track 2. For an image dated the 14th this would correspond to orbit 3264, which was commenced at 16:06. As the Stellarium terminator suggests that the time for the image derived from the Apollo timeline is entirely reasonable, these figures suggest, at most, an elapsed time of about 5 hours between the ATS image and the Apollo one. This five hours is sufficient for the cloud system highlighted by the yellow arrow to move from the centre of the tip of south America in the ATS image to nearer the east coast in Apollo. This and many other features show that the overall similarity of the images belies a wealth of subtle differences, demonstrating that while all the images show the same thing, they are not identical replicas.

An interesting addition to the data can be found in this journal, dedicated to amateur radio enthusiasts. The edition in question reports one ham’s attempts to intercept weather satellite data, specifically NIMBUS-III Infra-red images, and includes an image taken on November 14th. Figure shows that image, together with a comparison with the IR images used above.

Figure Screenshot from Apollo 12 broadcast on 14/11/69 (source given in text) with ESSA view (top right) and NIMBUS-3 views (below left and centre) and ATS-3 (below right) from the same date. Right is a satellite image reproduced in the Sarasota Herald Tribune, November 15, 1969.

CATM Home OBM Home
Intro Day 1 - 14/11/69 Day 2 - 15/11/69 Day 3 - 16/11/69 Day 4 - 17/11/69 Day 5 - 18/11/69 Day 6 - 19/11/69 Day 7 - 20/11/69 Day 8+ - 21 to 24/11/69 Synoptic
CATM Home OBM Home
Intro Day 1 - 14/11/69 Day 2 - 15/11/69 Day 3 - 16/11/69 Day 4 - 17/11/69 Day 5 - 18/11/69 Day 6 - 19/11/69 Day 7 - 20/11/69 Day 8+ - 21 to 24/11/69 Synoptic

The amateur set up, while subtly different thanks to the way the image has been decoded and projected, is undoubtedly the same IR view as those downloaded from the NSIDC, and equally undoubtedly shows the same weather features as the Apollo photograph. It also reinforces the claim that the USA’s weather satellite data could be downloaded by anyone with the right equipment.

We digress.

As mentioned above, the sequence of photographs around docking continues until AS12-50-7353, after which we move on to Day 2. Click the links below.

Figure Amateur recording of NIMBUS-3 image taken November 14th 1969 compared with other version and the same area from AS12-50-7331.
